SiroSilo In March 2026, SiroSilo developed and manufactured a new type of small box erector, which was showcased at the Sino-Pack 2026 exhibition.
Unlike the previous model, this new machine features significant improvements in both its exterior design and internal performance—let us walk you through the details.
What's Small Box
In the packaging industry, small boxes typically refer to folding cartons, with dimensions ranging from approximately 20x15x65mm to 150x200x250mm.
Based on the type of product being packaged, the size range for small boxes is as follows:
| Pharmaceutical/cosmetics boxes | L20-150mm x W15-100mm x H65-250mm |
| Food/daily necessities boxes | L40-100mm x W100-200mm x H120-250mm |
According to different die-cutting and creasing designs, small boxes can be categorized as:
- Tuck end box
- 123/1-2-3/snap lock bottom box
- Auto bottom box
- Mailer boxes
- Lid & base box
- Seal end carton
Small Box Erector
A small carton erector is a machine that automatically erects, folds, and bottom-seals flat cardboard box blanks into square boxes with an open top.
Types
Small box folding machines come in two types:
- Continuous Motion
A continuous small case erector operates without pauses between folding cycles.
The folding cycle only stops when the operator presses the stop or emergency stop button.
It’s like a car traveling on a highway; it only stops when the driver steps on the brakes and removes the key.
- Intermittent Motion
An intermittent small box case erector operates in a motion-pause-motion mode, pausing between folding cycles.
It’s like a car driving on a road with red lights at regular intervals; the interval between red lights is the time of one folding cycle.
Application
Undoubtedly, the production and promotion of small folding box machines aim to replace inefficient manual folding and improve packaging efficiency.
However, with the widespread adoption of cartoning machines that integrate folding, loading, and closing functions, why does the small box case erector still have a market?
Because some luxury goods are expensive, and mechanical loading may damage them, some irregularly shaped items are not suitable for mechanical packaging, and manual product loading may be more efficient.
For these types of products, combining folding carton erectors with manual product loading better meets customer requirements.
Working Principle
The core principle of a folding box machine is to precisely fold a flat piece of cardboard box blank into a three-dimensional box according to preset die-cutting & creasing lines through a series of automated mechanical motions.
This working principle can be broken down into the following three steps:
- Box Blank Feeding

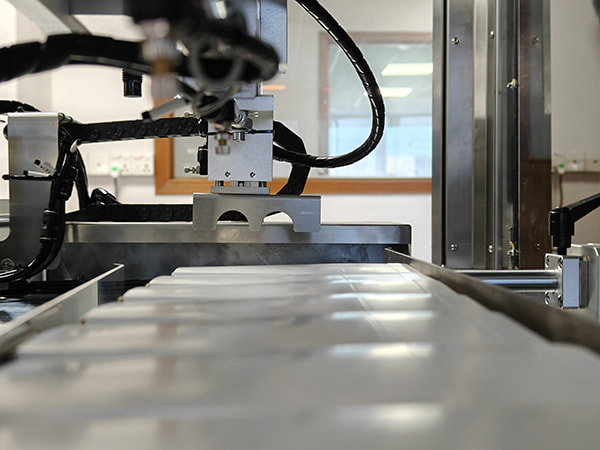

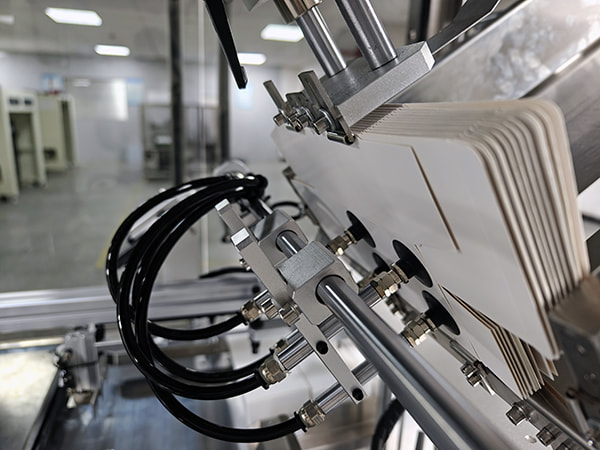

The vacuum suction cups accurately pick up the bottom box blank and smoothly transport it to the box-forming station.

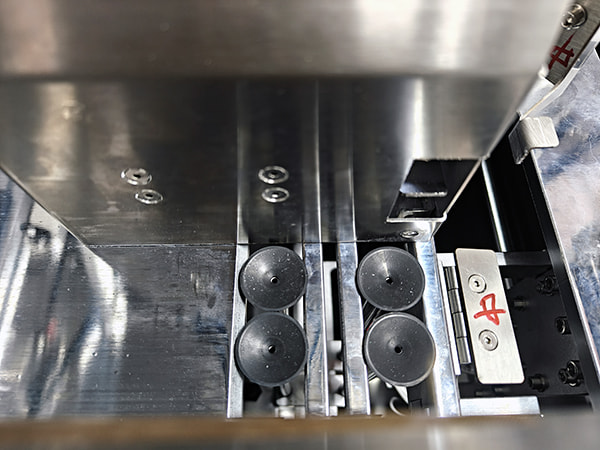

Then, vacuum suction cups at the bottom suck the cardboard blank into the forming station.
- Erecting, Folding, Bottom-closing

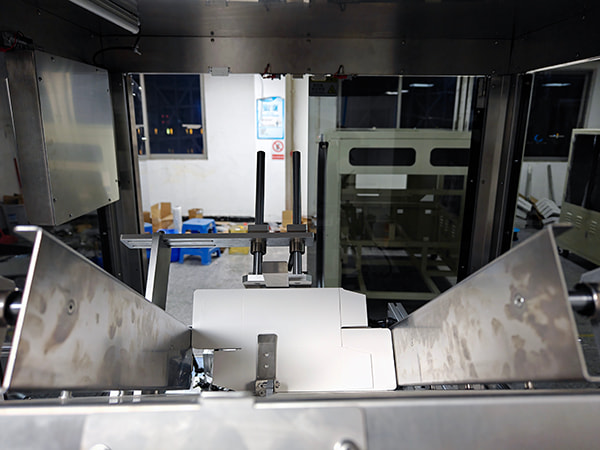

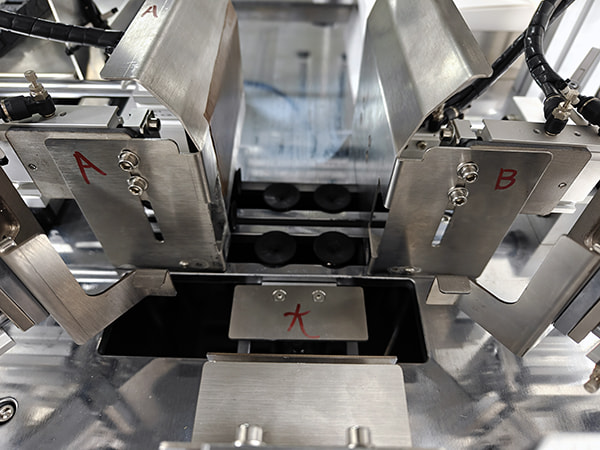

At the forming station, various cylinder-controlled mechanical components perform motions such as erecting the box, folding the dust flaps, folding the bottom closure panel, and inserting the bottom tuck flap.
- Closed Box Outputting
Finally, the formed box is first sucked into the ejection station by a vacuum suction cup and then ejected from the ejection port by a cylinder-controlled pusher.

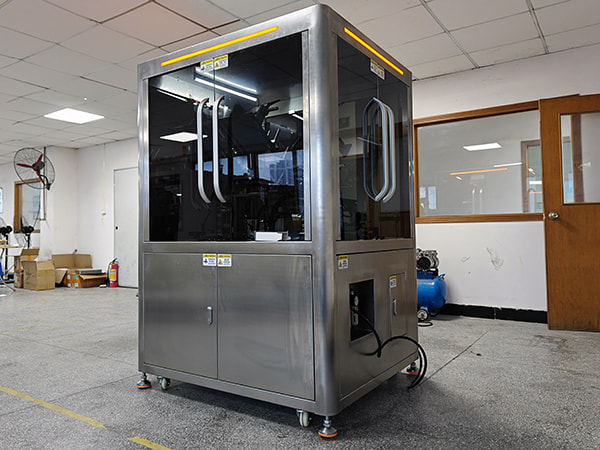

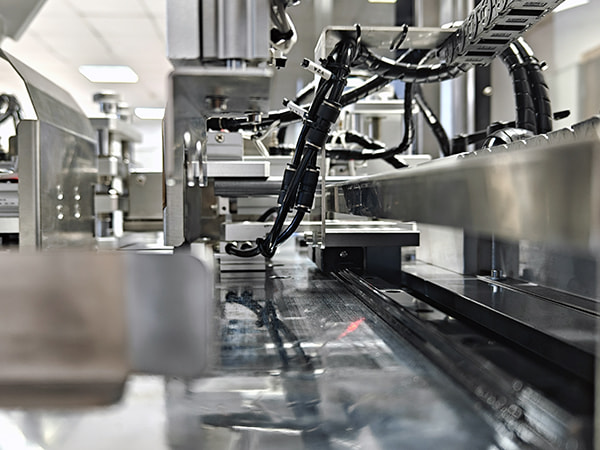

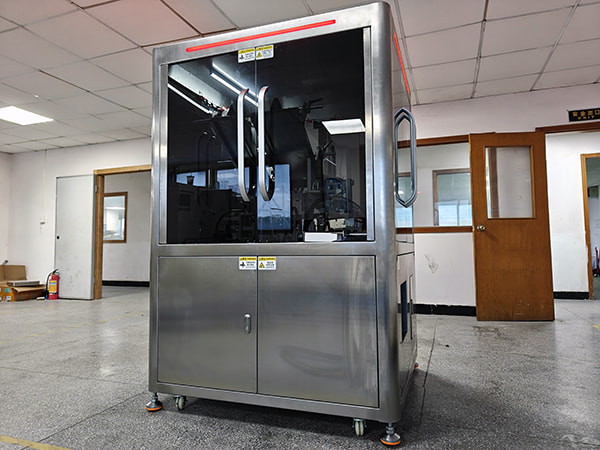

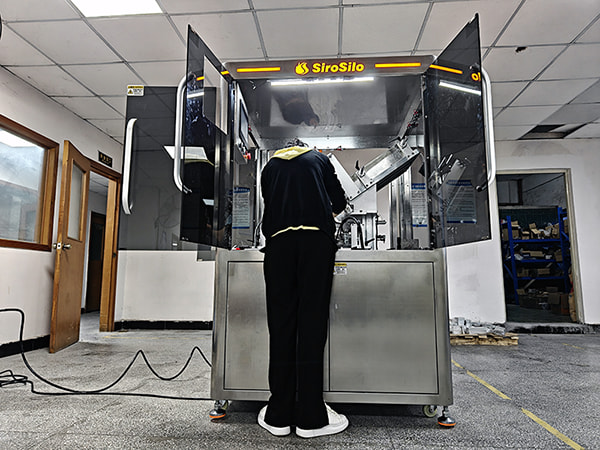

Photo Show
Manufacturing
A small carton erector manufacturing consists of the following steps:
- Customization solution discussion (ease of operation & debugging)
- Hardware design
- Design finalization
- Component production & procurement
- Frame assembly
- Power & compressed air distribution
- Software programming
- Power-on debugging
- Sample testing
Features
- Compact structure, small footprint

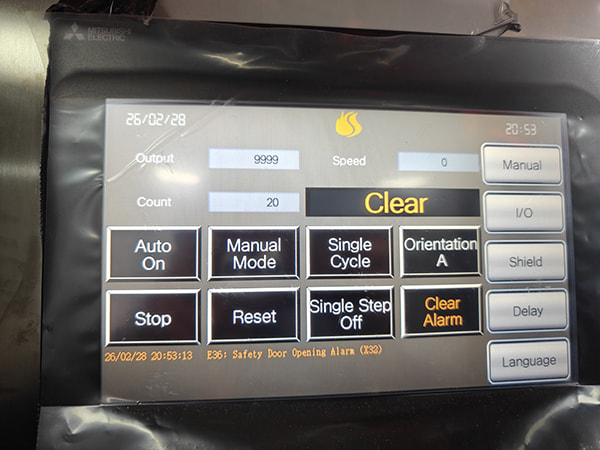

- Convenient 10″ & 90° rotation touchscreen control
- Photoelectric eye detection for box blank shortage
- Ordered closed-carton outputting
- Low power cuts electricity bills
- Safety cover protects the operator
- Easy shifting with universal wheels.
Parameters
| Speed | 10-20 CPM |
| Carton Size | L/(40-100mm) | (1.57″-3.94″) W/(25-70mm) | (0.98″-2.76″) H/(60-170mm) | (2.36″-6.69″) |
| Carton Material | Gray Cardboard, White Cardboard, Corrugated Paper |
| Blank Magazine Capacity | 400 Pieces |
| Motor Power | 0.2Kw |
| Voltage | 220/380V, 50/60Hz |
| Air Pressure | 0.6-0.8Mpa (6-8 bar/87-116 psi) |
Configurations
| No. | Item | Brand | Place of Origin |

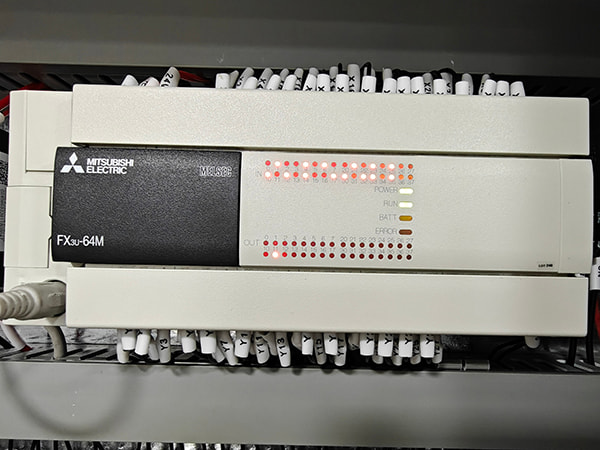

| 1 | PLC | Mitsubishi | Japan |

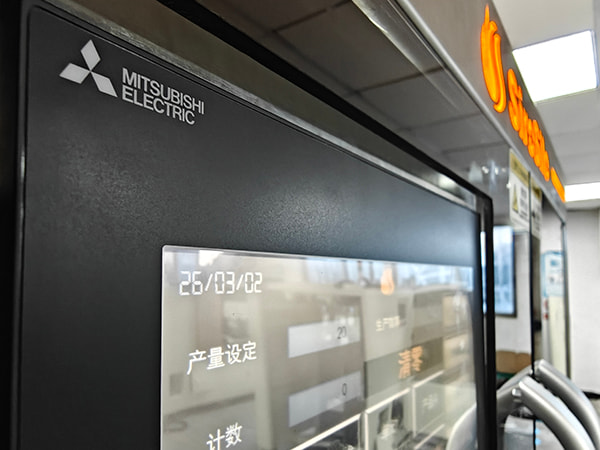

| 2 | 10″ Touchscreen | Mitsubishi | Japan |

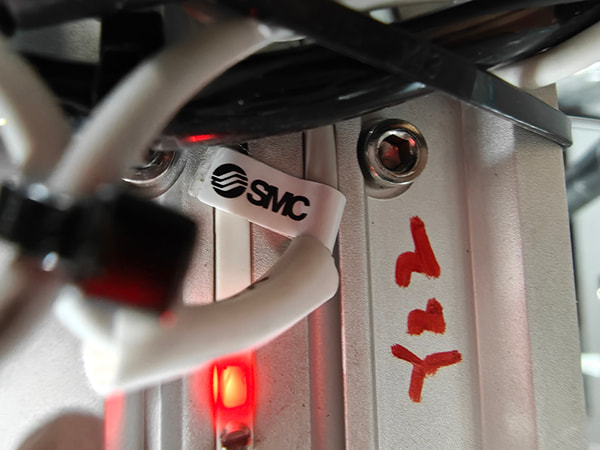

| 3 | Vacuum Generator | SMC | Japan |
| 4 | Air Cylinder | AirTAC | Taiwan, China |
| 5 | Cylinder Sensor | AirTAC | Taiwan, China |
| 6 | Electromagnetic Valve | SMC | Japan |
| 7 | Photoelectric Sensor | Rusk | China |
| 8 | Switched-mode Power Supply | MEAN WELL | Taiwan, China |
| 9 | AC Contactor | CHiNT | China |
| 10 | Breaker | CHiNT | China |
