Cardboard V Grooving Machine

Item Cardboard V Grooving Machine
Compatible Board Grey Cardboard, White Cardboard, KT Board (PS Form), MDF
Grooving Angle 80°-140°
Types Automatic/Semi-auto/Manual
Max. Length/Width 2000mm/1160mm
Speed Depends on Model
Corner Height 75/150mm
Air Pressure 0.5-0.8 Mpa | 5-8 Bar
Voltage 110/220/380V | 50/60Hz

  • Product Detail
  • Inquiry

Cardboard V Grooving Machine

Whether you are producing rigid boxes/hardcovers, creating customized cartons, or designing attractive packaging cases, the cardboard V grooving machine could be your good helper, helping you complete projects better & faster.

gift-box-design-0

There are various types of cardboard grooving machines on the market, how do you choose the most suitable type?

semi-automatic-cardboard-v-grooving-machine-1

Read this guide to buy your dreamy cardboard grooving machine for rigid/gift box production or hard case making.

most-economical-rigid-box-line-workflow-0

Definition

The cardboard V groove cutting machine is a standard piece of packaging equipment in the gift box industry, its blades remove excess fibers from the cardboard sheet surface along a path, forming V grooves.

semi-automatic-cardboard-v-grooving-machine-2

With these V grooves, the cardboard is foldable to form a three-dimensional cardboard box.

v-groove-cardboard-folding-to-box-0

Cardboard groover machines have similar functions to conventional creasing machines, but compared with the latter, it has the following advantages:

  • Sharp edges & corners, a simple & beautiful appearance after forming.
  • Rebound force reduction of the paperboard for anti-deformation.
  • Pre-folding process is unnecessary and post-gluing is more convenient.

Application

A manual paper board grooving machine is suitable for manual grooving sample boxes, helping to develop innovative packaging designs, gift box prototypes, and rigid box samples.

manual-v-type-cardboard-grooving-machine-4

Semi-auto cardboard V groove cutting machines are widespread in gift box & case proofing or small batch production.

semi-automatic-cardboard-grooving-machine-1

An automatic cardboard grooving machine is useful for bulk rigid box or hardcover case making, such as luxury boxes, mobile phone boxes, wine boxes, tea boxes, shoe boxes, bookcases, etc.

application-of-cardboard-v-grooving-machine-0

Types

There are 3 types of V grooving machines for cardboard:

Automatic

Such an automatic grooving machine grooves cardboard & MDF sheets in batches.

automatic-cardborad-v-groove-cutting-machine-1

It is essential equipment for the mass production of rigid boxes, gift boxes, hardcovers, and hard cases.

rigid-boxes-and-gift-boxes-0

Working Principle

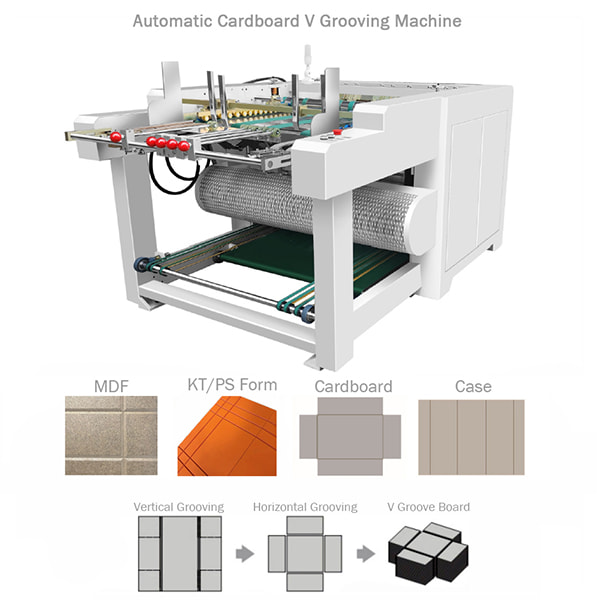

Before understanding how it works, let’s roughly digest its structure regarding the schematic below.

automatic-cardboard-grooving-machine-structure-schematic-0

Such an automatic rigid box grooving machine consists of the following components:

  • Frame
  • Board Baffle (Magazine)
  • Infeed Belts
  • φ60cm Drum
  • Drum Belts
  • Cutter Blades
  • Outfeed Belts
  • Motor
  • Chain & Gear Drive
  • Leveling Feet

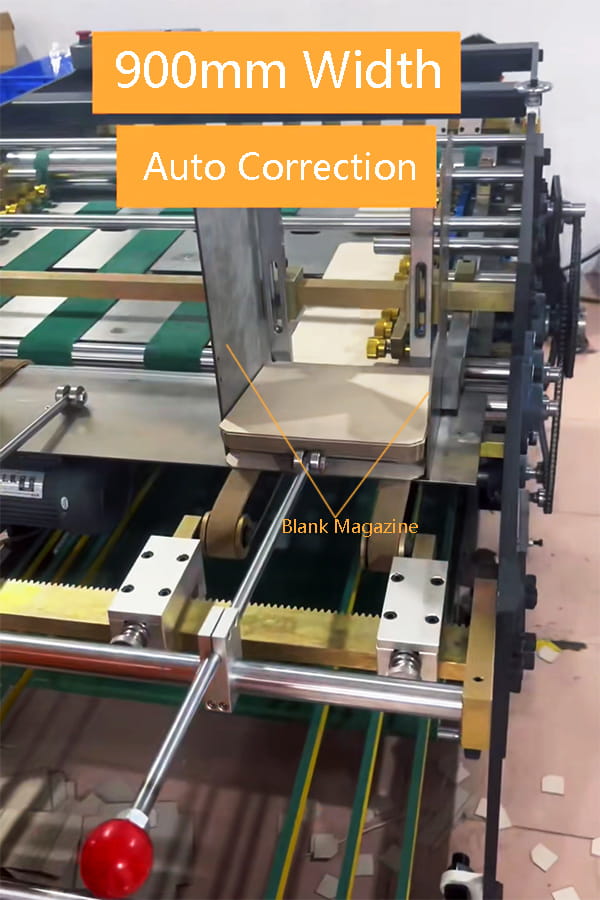

A worker manually adds board sheets to the baffle magazine first;

board-baffle-magazine-0

Then the infeed belts convey sheets to the surface of a φ60cm drum;

φ60cm-drum-surface-sheets-0

As the drum rotates, cardboard, KT board, or MDF sheets pass through diagonally opposed cutters;

automatic-cardborad-v-groove-cutting-machine-2

These cutter blades remove excess fibers from the sheet surface;

automatic-cardborad-v-groove-cutting-machine-3

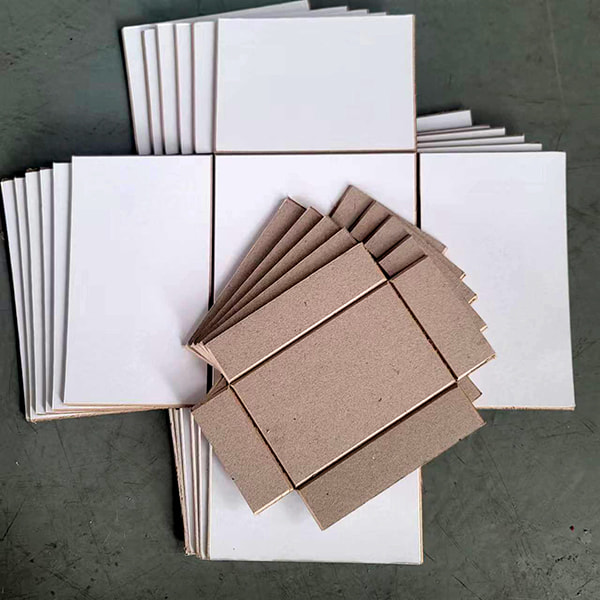

Forming V grooves:

grey-cardboard-v-grooves-0

Features

Such a rigid box grooving machine adopts an automatic correction combination (belt, anti-deflection wheel, board baffle magazine).

Thus you could directly place the sheets into the magazine and these sheets are automatically corrected before passing through the V-groove cutter, ensuring the accuracy & uniformity of grooving.

board-baffle-magazine-4

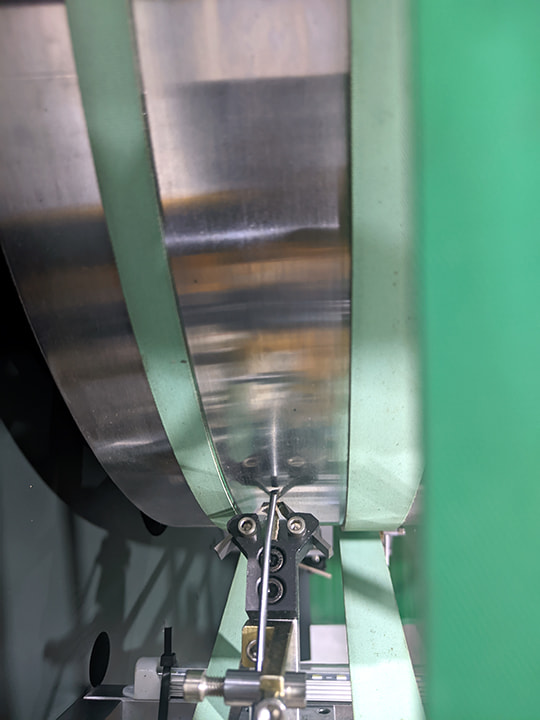

The groove blade holder introduces a unique structure design, ensuring:

groove-blade-holder-0

  • No error in grooving;
  • Back and forth shaking of sheets is avoidable;
  • Blade holder & drum damage is avoidable during debugging.

And the blade position is adjustable via the knob.

cutter-blade-adjustment-via-the-knob-0

There are visible scales under the knob, which is convenient enough.

Imported tungsten steel cutting blades ensure long grooving life & excellent grooving effect.

imported-tungsten-steel-cutting-blades-0

In addition, this machine automatically cleans waste materials after grooving and collects them, the recycled waste materials can pay part of your electricity bill after being sold.

automatic-waste-cleanning-and-collecting-0

Imported high-quality transmission bearings ensure extremely low noise & eccentricity when the machine operates at high speed.

Gear & chain drive replaces belt drive to improve machine quality and extend service life.

chain-and-gear-drive-0

Parameters

Item Automatic V Grooving Machine for Cardboard
Speed 10-80m/min
Cardboard Size Length: 80-600mm/3.15″-23.6″
Width: 80-1160mm/3.15″-45.67″
Thickness: 0.5-4mm/0.02″-0.16″
Board Material Gray Cardboard, White Cardboard, KT Board, MDF
Grooving Angle 80°-140°
Cutter Blades Qty. 8/10
Power 2.2/3.7kW
Voltage 110/220/380V, 50/60Hz
Air Pressure 0.5Mpa-0.8Mpa | 5-8 Bar

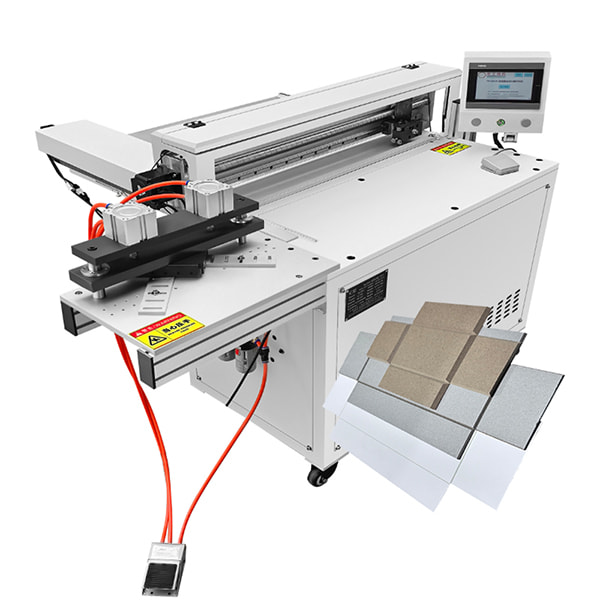

Semi-Automatic

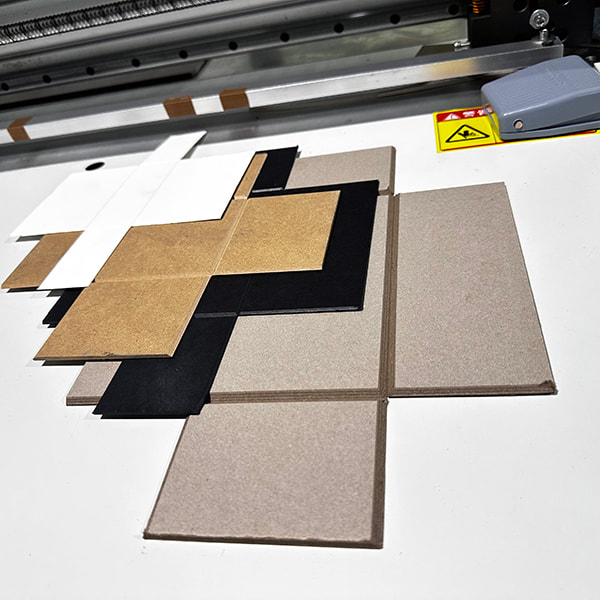

A semi-automatic V groove cutter machine is useful in prototyping gift boxes & rigid boxes, and some customers also use it for small-batch rigid box grooving.

semi-automatic-cardboard-grooving-machine-0

Three types are available for your choice:

Pneumatic Control

Working Principle

First, let’s show you the following schematic.

pneumatic-control-semi-auto-cardboard-grooving-machine-schematic-0

Converting cardboard sheet to v-groove cardboard on this machine involves three steps:

  • Corner Cutting

cardboard-corner-cutting-0

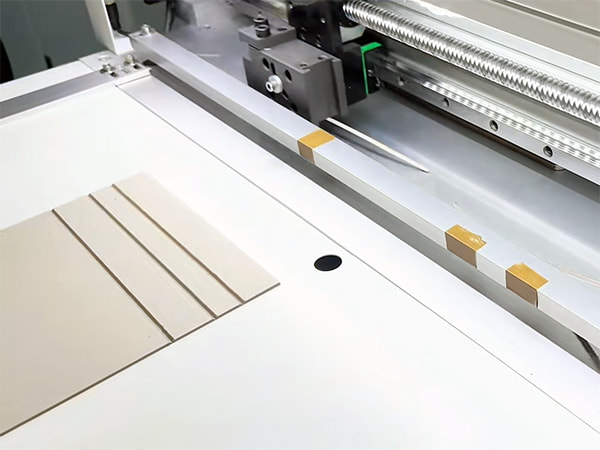

  • Vertical Grooving

cardboard-vertical-grooving-0

  • Horizontal Grooving

cardboard-horizontal-grooving-0

Features

A 32mm diameter air cylinder controls the cutter stroke.

32mm-diameter-air-cylinder-0

With high-precision slide rails, a high-pressure output rodless piston cylinder, and an aviation aluminum workbench, they ensure high grooving accuracy & good prototyping effect;

semi-automatic-cardboard-grooving-machine-6

Its automation lies in corner cutting, cardboard sheet pressing, and V-groove cutting, the latter two motions must be completed artificially on the manual model.

semi-automatic-cardboard-grooving-machine-7

The photo below displays its program control screen.

semi-automatic-cardboard-grooving-machine-5

Parameters are adjustable on it, such as cutting time/stroke, and the control is convenient.

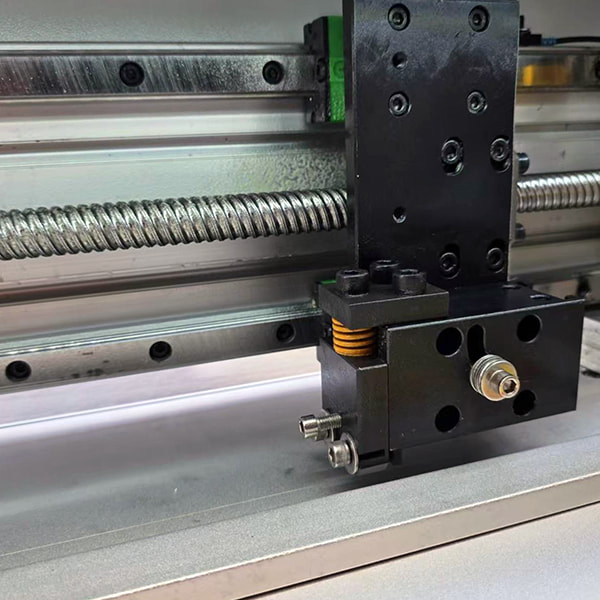

As the grooving angle needs to change in real production, its blade holder is user-friendly, with fast knife changeover & high stability, minimizing downtime.

pneumatic-control-semi-auto-cardboard-grooving-machine-blade-holder-0

The following features are also attractive among clients.

features-of-semi-automatic-cardboard-grooving-machine-0

Furthermore, this cardboard groove cutter is capable of grooving 4mm thick MDF, the same thickness supported by Kolbus NM 101 of Germany:

Parameters
Item Pneumatic Control Semi-auto Cardboard Grooving Machine
Speed 0.5s/cut
Cardboard Size Width: 0-700mm/0″-27.56″
Thickness: 0-8mm/0″-0.315″
Board Material Gray Cardboard, White Cardboard, KT Board, MDF
Grooving Angle 80°-135°
Tolerance 0.05mm
Max. Corner Height 75/150mm
Voltage 110/220/380V, 50/60Hz
Air Pressure 0.5Mpa-0.8Mpa | 5-8 Bar

Servo Driven

A servo motor controls the back-and-forth circulation of the cutter, which is more precise, smooth, and stable.

servo-driven-semi-auto-cardboard-v-grooving-machine-schematic-0

  • Cutter circulation without air compressor, no more affection by air pressure;
  • Smoother blade back-and-forth movement, blade loss rate reduction;
  • Consistent groove depth without a difference;
  • Optional manual/automatic controls.

Its price is higher than the pneumatic control one.

If you have extremely high requirements for precision, stability, and smoothness, we recommend you choose the servo version;

servo-version-semi-automatic-cardboard-grooving-machine-0

As long as the pressure of your compressed air source is stable, the pneumatic control model can also meet your high-quality cardboard grooving requirements.

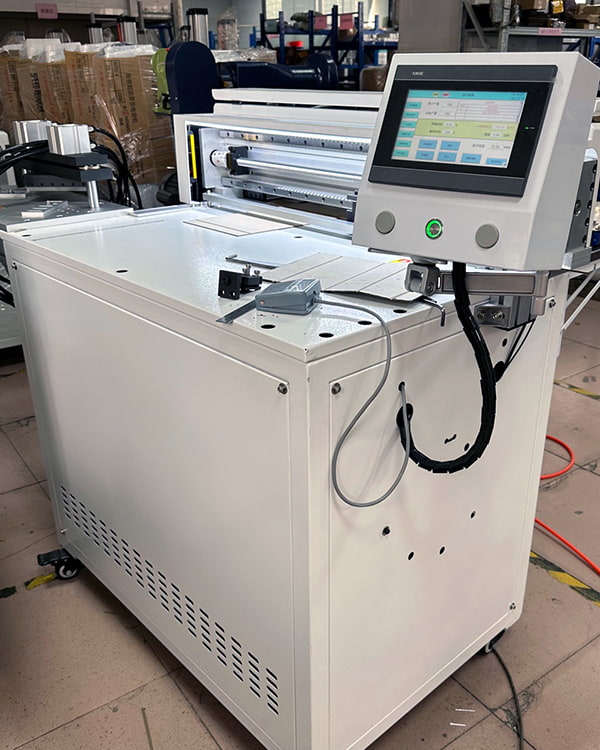

Servo Driven Automatic Size Adjustment

This is the latest model launched in 2024.

servo-driven-semi-auto-cardboard-v-groover-schematic-0

It also uses a servo to control the cutter blade circulation and adds a servo for automatically adjusting the grooving height.

servo-driven-program-control-semi-auto-cardboard-groove-cutter-0

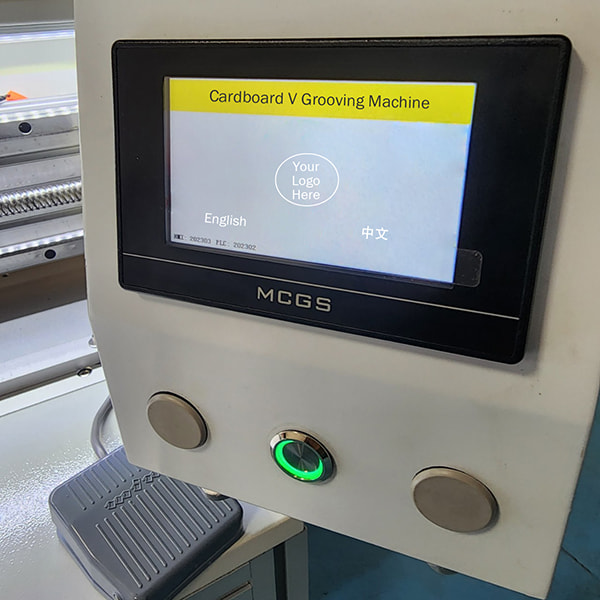

As shown in the HMI (English Customizable):

grooving-height-setup-0

For more info about the above semi-auto models, please get in touch with us via Email or WhatsApp:

Email: info@sirosilo.com

WhatsApp: +8617312124727

Manual

The manual V type cardboard grooving machine is the best choice for sampling chocolate, gifts, handicrafts, luxury, wine, and mobile boxes.

manual-v-type-cardboard-grooving-machine-0

It is compatible with white cardboard, greyboard, and MDF board (Medium Density Fiberboard), and its effective stroke is 700mm.

manual-v-type-cardboard-grooving-machine-3

With this machine, grooving efficiency is at least 5 times higher than hand work, and the grooves are neat & even.

manual-v-type-cardboard-grooving-machine-2

Such a manual V grooving machine for cardboard is trendy among foreign customers, it is because of the following features:

manual-v-type-cardboard-grooving-machine-5

  • Compact structure, small footprint, and lightweight;
  • Simple operation, anyone can use it skillfully after 30 mins learning;
  • No electricity, high safety;
  • 20mm thick aviation aluminum base to ensure grooving accuracy;
  • Grooving size tolerance ±0.03mm;
  • Tungsten steel grooving blade, high hardness, rust-resistant, and wear-resistant.

A German manufacturer also supplies such a machine, the Kolbus manual grooving table GT 100, which has quite a high search volume on Google and YouTube.

You can contact them if you are interested.

Price

In China:

The manual cardboard V grooving machine price is US$500-1,000;

A semi-automatic cardboard V groove cutter machine price is US$1,000-4,000;

semi-automatic-cardboard-grooving-machine-11

An automatic rigid box grooving machine price is US$8,000-18,000.

rigid-box-grooving-machine-0

Cardboard Grooving Machine Choice

To purchase a China cardboard V grooving machine, you’d better consider the following five points in advance:

  • Board Material
  • Sizes of Your Boards
  • Thicknesses of Your Boards
  • Your Target Speed (Single Shift Output)
  • Budget

After confirming these five points, you can narrow the search scope and find your favorite rigid box grooving machine faster.

The next step is to filter a suitable supplier in the huge Chinese supplier pool.

fish-pool-1

You have browsed here, so why not contact us and win the same worry-free sourcing experience as our US client Mr. Bob?

Email: info@sirosilo.com

WhatsApp: +8617312124727
