Packaging Machine/

Metal Detector Checkweigher

Item Metal Detector Checkweigher
Rejection Air Jet/Push Plate/Arm
Controlling System High Speed A/D Sample Controller
Control Panel Touch Screen
Recipe Storage 99
Compressed Air Pressure 0.6-0.8 Mpa/6-8 Bar
Working Environment Temperature: 0℃-40℃/Humidity: 30%-95%
Frame SUS304
Machine Hand Facing HMI, Left to Right

  • Product Detail
  • Inquiry

Metal Detector Checkweigher

A metal detector checkweigher is a combined machine that integrates both metal-detecting and dynamic weight-checking functions.

metal-detector-checkweigher-5

Introducing this combo system into your production line will bring you the following benefits:

  • Simultaneous product safety & quality upgrading;
  • Space saving;
  • Simple use;
  • Initial investment reduction;
  • Easy maintenance & repair.

It is common in food, drinks, medicines, health products, 3C electronics, and daily chemicals industries.

If you are interested in this checkweigher metal detector combo system, please get in touch with us to customize it.

Email: info@sirosilo.com

WhatsApp: +8617312124727

Overview

The integrated metal detector checkweigher is a machine that combines the conveyor metal detector & dynamic checkweigher into one frame.

metal-detector-checkweigher-0

Because of this, it can detect metal impurities in product packaging and whether the packaging weight meets the standard.

And because of its integration, it occupies a smaller area, which can effectively save your factory space.

Schematic

Refer to the following two pictures to better understand the composition of this combo system:

  • 1

metal-detector-checkweigher-4

  • 2

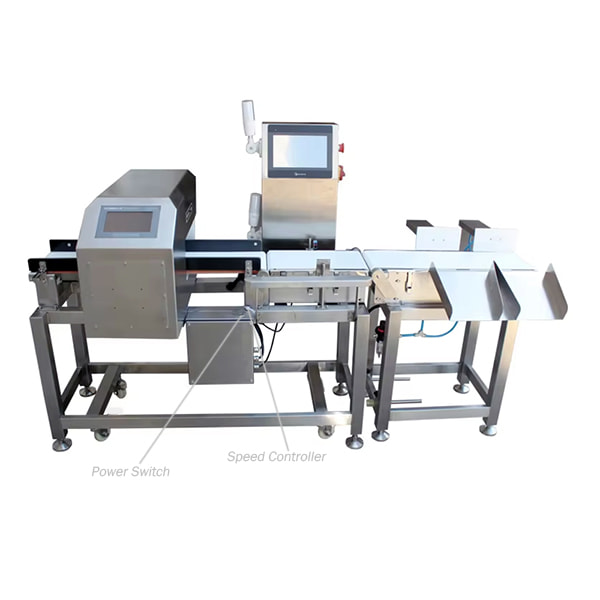

metal-detector-checkweigher-10

It consists of:

  • Infeed Conveyor
  • Detect Sensor
  • Touchscreen HMI
  • Checkweighing Conveyor
  • Rejector
  • Outfeed Conveyor
  • Power Switch
  • Speed Controller
  • Tower Stack Light
  • Leveling Feet
  • Universal Wheels

Working Principle

Such a combo system introduces electromagnetic induction technology and a high-precision weighing system to achieve metal detection and check weighing.

Specifically, the device scans the products passing through by emitting high-frequency electromagnetic waves.

conveyor-metal-detector-working-principle-0

Once the product/package contains metal impurities, the electromagnetic waves will be reflected or absorbed, triggering an alarm device to sound an alarm.

At the same time, high-precision load cell sensors weigh the products/packages quickly and accurately, and the products are sorted according to the preset weight ranges.

high-precision-load-cell-0

Features

  • Metal Detection
Metal detection for beverages, chemicals, electronics, food, health care products, medicines;
Humanized & intelligent PLC control;
HD 7-inch touch screen HMI;
Intuitive interface, easy operation;
One-touch self-learning, one-time pass, permanent memory;
User access and detection log storage and display;
Output statistics storage;
Quick product changeover, minimize setting time;
Real-time display of total, qualified, and defective output (maximum 1 million);
Up to 700 alarm log storage;
Built-in date calendar, log traceable;
Detection signal strength display;
200+ recipe storage;
Automatic fault detection & prompt at startup;
Checkweighers, code printers, cartoners, FFS machines, scanners, and tube fillers combination.
  • Checkweighing
Multifunctionality Beverages, chemicals, electronics, food, health care products, medicines weighing;
Recipe Storage 99 sets, easy product switch;
Simple Operation Weinview color touch HMI;
Easy Maintenance Easy conveyor belt assemble & disassemble, install, maintain, and clean;
Adjustable Speed Frequency conversion control motor;
High-speed & High-precision Weighing Mettler Toledo load cell sensor;
Zero Tracking Manual or automatic clear, dynamic zero tracking;
Inline Integration Metal detectors, X-ray machines, code printers, cartoners, FFS machines, scanners, and tube fillers;
Reports Automatically generate various EXCEL format production reports in real-time;
Reserved Interface PC connection to facilitate data management;
Centralized Control Multiple checkweighers can be centrally controlled through one computer.

Configurations

Item Brand Place of Origin
Touchscreen Weinview China
Loadcell Sensor METTLER TOLEDO USA
Power Supply Switch Omron Japan
Solid State Relay Omron Japan
Intermediate Relay Honeywell USA
Frequency Converter Danfoss Denmark
Motor JSCC China
Conveyor Belt YONGLI BELTING China

Applications

Metal detector & checkweigher combination system is ideal for detecting metal impurities and weight violations in products or packages.

It’s common in the following industries:

  • Bakery
  • Beverages
  • Cereals & Grains
  • Chemicals
  • Confectionery & Snack Foods
  • Convenience Foods
  • Dairy & Egg Products
  • Dried Foods
  • Electronics
  • Fruit & Vegetables & Nuts
  • Health Care Products
  • Meat & Poultry & Fish
  • Pharmaceuticals

Price

Checkweigher metal detector price in the Chinese market varies between different suppliers & manufacturers.

The photo below shows the reference price:

metal-detector-checkweigher-reference-price-0

Manufacturers

Famous metal detector & checkweigher combo suppliers include:

If you don’t mind sourcing from China, you are welcome to contact us for a detailed discussion, a right contact leads to the right result.

Email: info@sirosilo.com

WhatsApp: +8617312124727

Conveyor Metal Detector

A conveyor metal detector always integrates a belt conveyor for a product or package passing by, any product or package will pass through the integrated metal detector sensor.

conveyor-metal-detector-featured-image-0

If the machine detects metal impurities, the rejector will remove the impure product or package from the belt conveyor.

Dynamic Checkweigher

A dynamic checkweigher weighs each item passing through the production line, classifies each passing product according to the preset weight zone, and then releases or rejects the product based on the weighing results.

Simply put, checkweighers weigh, sort, and separate products.

You have read this far, so why not contact us so that you can have a worry-free purchasing experience like our American customer Mr. Bob?

Email: info@sirosilo.com

WhatsApp: +8617312124727
