Packaging Machine/

Multi Head Packing Machine

Weighing Range 15g-1000g
Filling Volume 150ml-2000ml
Packing Speed 5-60 pouches/min
Pouch Types 3 side seal pouches, 4 side seal pouches, pillow pouches, gusset pouches
Film Thickness 4μm-8μm
Film Reel Width Max. 420mm
Pouch Width 50mm-250mm
Pouch Height 80mm-420mm

  • Product Detail
  • Inquiry

Multi Head Packing Machine

What is Multi Head Packing Machine?

Frankly speaking, the multi head packing machine should be called the multi head packing line, because it is composed of a variety of different equipment.

Weighing and packaging are the most important processes of a multihead weigher packing machine, the multihead weigher is responsible for weighing, and the VFFS machine is responsible for packaging.

The weigher packing machine can not only accurately weigh the products, but also automatically package the weighed products, it is very efficient and easy to use.

multihead-weigher-packing-machine-1

In fact, the weigher packing machine can complete a series of processes such as feeding, weighing, bag making, filling, sealing, date code printing and packed pouch outputting in one stop.

It is mainly used in food, pharmaceutical, daily chemicals, electronics, hardware, etc. industries.

  • Food

Puffed food, potato chips, candies, pistachios, raisins, glutinous rice balls, meatballs, peanuts, biscuits, jelly, candied fruit, walnuts, pickles, frozen dumplings, almonds, salt, sugar, red dates, oatmeal, etc.

  • Pharmaceutical and Chemical

Fertilizer pellets.

  • Daily Chemical

Washing powder.

  • Hardware

Screws, nuts, nuts, fasteners, nails.

multihead-weigher-packing-machine-4

When you plan to purchase a weigher packing machine, you’d better understand the following relevant information and provide them to us, then we can quickly recommend the most suitable model for you.

In this way, it can save your priceless time and energy.

  • Product Type

Please try your best to send us product pictures for confirmation. If possible, I hope you can send us some samples, samples can help us figure out a better solution, it will suits your needs perfectly.

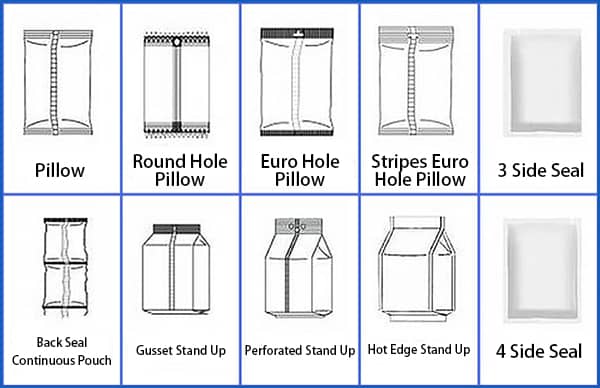

  • Pouch Type

Common pouch types include: Pillow pouch, 3 side sealing pouch, 4 side sealing pouch, gusset pouch, stand up pouch.

pouch-styles-1

  • Pouch Material

Common materials for pouches are composite film, anti-static film, matte film, aluminum foil film, printed film, non-woven fabric, etc.

pouch-material-1

  • Pouch Thickness

It is the pouch material’s grammage, which refers to the material’s weight per square meter.

  • Pouch Size

With reference to the following photo, pouch size actually refers to the pouch’s total width and total height.

Pouch-Size-1

Multihead Packing Machine Schematic

As can be seen from the below schematic:

multihead-weigher-packing-machine-2

The standard multihead weigher packing machine mainly includes the following basic equipment:

  • Vibrating Feeder
  • Z Bucket Conveyor
  • Multi Head Combination Weigher
  • Support Platform
  • Vertical Form Fill Seal (VFFS) Machine
  • Outfeed Conveyor

Some customers will install a gravity fall metal detector under the multihead combination weigher’s discharge chute, remove the detected metal material from the waste outlet.

gravity-fall-metal-detector

Gravity Fall Metal Detector

In addition, there are some options on the vertical form fill seal packaging machines, mainly including:

  • Inkjet Date Coding

It is able to print batch & date code on the pouch.

inkjet-date-coding

Inkjet Date Coding

  • Nitrogen Flush

It is capable of fill nitrogen gas into the pouch, thus remove the oxygen from food pouch, protect the food inside for a longer period.

Nitrogen-Flush

Nitrogen Flush

  • Tare Notch

It can punch a notch on the pouch’s top side, then customers can easily tear open the pouch.

Tare-Notch

Tare Notch

  • Perforator

With perforator, It can perforate a row of holes without breaking the upper and lower neighbor pouches, thus it can make continuous pouches as you like, several pieces of neighbor pouches are linked or chained together.

Perforator

Perforator

  • Hole Punch

It can punch a small hole in the pouch body, with this small hole, it is convenient for the pouch to hang on the shelf.

Hole-Punch

Hole Punch

Working Principle of Multihead Weigher Packing Machine

According to the below picture:

multihead-weigher-packing-machine-workflow

The basic workflow of the multihead weigher packing machine is:

  • Material Feeding
  • Weighing
  • Bag Making
  • Filling
  • Sealing
  • Date Coding
  • Discharging
  • Checkweighing
  • Cartoning

Next, let me introduce the multihead weigher packing machine’s working principle in details.

  • Material Feeding

Generally speaking, the upstream production line’s outfeed conveyor transports materials to the hopper automatically, or workers manually add materials to the hopper.

The materials in the hopper directly fall onto the feeder, the feeder vibrates the material into the infeed conveyor’s buckets.

vibrating-feeder-2

The infeed conveyor lifts the material upward, and then dumps the material into the multihead weigher’s infeed chute.

  • Weighing

The multihead weigher is responsible for the task of weighing.

The materials enter the multi weigher’s dispersion feeder from the infeed funnel.

Multihead-Weigher-2

The dispersion feeder distributes the material to each radial feeder through vibration, and the radial feeder disperses the material to each pool hopper through vibration.

Multihead-Weigher-4

After the last weighing is completed, the material in the pool hopper enters the weight hopper for the next weighing cycle, the load cell in the weight hopper feeds back the weight to the PLC.

After the PLC runs the combination calculation, it determines the weight hopper combination that is closest to the target weight, and sends a command to the corresponding weight hopper, release the materials to the discharge chute.Multihead-Weigher-5

When the timing hopper receives the release command, it will open the discharge chute and outfeed the materials to the VFFS machine’s inlet.

Multihead-Weigher-6

  • Vertical Form Fill Seal (VFFS)

While the timing hopper is waiting for command to release the material, the vertical packaging machine starts to work according to the steps of form, fill, and seal.

As shown in the figure below, the vertical packaging machine is mainly composed of a film pulling system, a former, a horizontal sealing device, a vertical sealing device, a cutting device, and a photoelectric monitoring system.

vffs-machine-schematic

The film is transmitted to the forming tube through the film pulling system, passes through the collar, and is stretched down by two sets of high-quality pulling belts.

film-reel

Film Reel

film-pulling-system

Film Pulling System

When the machine first starts, it will manually make one pouch first. After the manual bag making is completed, the bottom bag is cut off, and the upper bag’s bottom is also sealed into shape.

During the down-stretching process, the sealed bottom goes down, and the vertical sealing bar first melt the vertical edges on the film’s both sides, bond the film until the bond length reaches the preset value.

vertical-sealing-bar

Vertical Sealing Bar

At this time, a pouch with only the top opening is formed, the timing hopper receives a command to release the material to the open pouch.

After the filling reaches the preset gross weight, the filling stops, and the horizontal sealing jaws seal the top of the bag and forms the upper bag’s bottom at the same time.

horizontal-sealing-jaws

Horizontal Sealing Jaws

In this way, the form, film and seal of the pouch are completed cyclically.

If it is a pre made pouch packing machine, the product packaging process mainly includes the following steps:

  • Pick-up Doypack

The doypack is picked to the gripper, no pouch warning, reducing the labor intensity;

  • Print Date Code

Ribbon detection, alarm when the ribbon is used up, touch screen display to ensure the normal date coding;

  • Open Pouch

Open the pouch to detect, if bag is not open, no filling, avoids wasting material;

rotary-pouch-packing-machine-1

Rotary Pouch Packing Machine

  • Fill Material

Inspection, if no material, no filling and no heat-sealing, to ensure that the bag is not wasted;

  • Heat Sealing

Alarm for abnormal temperature to ensure sealing quality;

  • Cooling, Shaping and Discharging

Ensure that the seal is beautiful.

  • Discharging

After the pouch is cut off from the forming tube, it is a packed pouch, which drops directly onto the outfeed conveyor belt and forward to the downstream equipment.

outfeed-conveyor-3

  • Metal Detection & Checkweighing

Generally speaking, the packed food pouches will first be conveyed to the metal detector, and the metal detector will detect whether the food pouches contain metal.

If metal is detected in a certain food pouch, the pneumatic push rod will remove it to the waste collection box.

metal-detector-1

Metal Detector

The food pouches passed by the metal detector will forward to the checkweigher, check whether the packaging weight is within a reasonable range of the target weight.

checkweigher-1

Checkweigher

Food pouches that do not meet the target weight will also be rejected into the waste collection box.

  • Cartoning

After food pouches pass metal detection and checkweighing, they go ahead to the case packer or cartoner machine for cartoning.

Multihead Packing Machine Features

As the multihead packing machine is composed of many equipment, the features of each equipment are introduced one by one below.

  • Vibrating Feeder

Vibrating feeder is a kind of equipment that uses motor vibration and gravity to move materials in a small range, generally distributing materials to a conveyor.

vibrating-feeder-1

Vibrating Feeder

Vibrating feeders are widely used in many industries, including:

  • Electronics
  • Fast Moving Consumer Goods (FMCG)
  • Food
  • Hardware
  • Pharmaceutical
  • Plastics

SiroSilo vibrating feeder mainly has the following features:

  • Compact footprint
  • Easy installation
  • Easy maintenance
  • Easy disassembly
  • Hygienic design, easy to wash
  • Lightly eco-friengly
  • Low noise
  • Low power consumption
  • Speed controllable
  • Stainless steel frame

The main parameters of SiroSilo vibrating feeder are shown in the below table.

Hopper Capacity 140/150L optional
Conveying Capacity 3-5m3/h
Power 0.3Kw
Voltage AC 220/380V
Frequency 50/60Hz
Weight 105Kg
  • Z Type Conveyor

Z type conveyor, also known as Z type bucket elevator, its main purpose is to lift the materials from the vibrating feeder to an ideal height, ensuring that the elevated height is convenient for feeding to the downstream multihead weigher.

z-conveyor-2

Z Conveyor

The Z type elevator is an ideal choice for conveying many types of food, such as peanuts, soybeans, rice, candy, dried fruits and other foods.

It is also often used to transport granular materials in the daily chemical, hardware, chemical, pharmaceutical, and transportation industries, such as washing powder, screws, nuts, capsules, etc.

SiroSilo’s Z type conveyor mainly has the following unique features:

  • All parts with inspection cover or inspection window, quick installation or removal;
  • Bucket material can be customized on demand, SUS 304 chain, long service life;
  • Built-in chain tensioner and overload protection device;
  • Fully enclosed, no spilling, no leaking, no flying dust, clean and hygienic;
  • Lifting speed control by invertor, convenient and reliable;
  • Powerful sprocket with low noise, stable operation;
  • Single-point or multi-point feeding, easy to connect various upstream feeding equipment;
  • Small footprint, saves workshop space.
z-conveyor-3

Customized Bucket

Its main parameter are shown in the following table.

Conveying Capacity 4-6m3/h, 6-8m3/h, 8-12m3/h, 12-16m3/h optional
Voltage AC220V/380V, 50Hz/60Hz
Power 0.75Kw, 1.1Kw-2.5Kw, 3Kw, 4Kw respectively
  • Multihead Weigher

The materials lifted by the Z conveyor are dumped into the multi weigher.

After materials are distributed by the multi weigher to the weigh hoppers, the calculation is performed to determine the combination closest to the target weight, and this process is repeated again and again.

The warranty of SiroSilo multi head scales is two years, mainly with the following unique features.

multi-head-scales-1

You can also click our multi head scale page to know more details.

  • Vertical Form Fill Seal (VFFS) Machine

SiroSilo vertical form fill seal VFFS machine is suitable for the measuring and packaging of a large number of granular materials, it mainly has the following features.

  • All parts in contact with materials are made of stainless steel;
  • Customizable for different types of pouch styles;
  • Double belt driven film pulling system, fast and stable, low friction and loss;
  • Highly automated, high production speed and low failure rate;
  • Intelligent PID temperature controller, accurate temperature control, to ensure beautiful and smooth sealing;
  • Packaging parameters setup on touch screen with memory function;
  • PLC, servo motor, pneumatic components, and touch control screen, which greatly improves the control accuracy, reliability and intelligence;
  • Safety cover optional;
  • The fault display system is convenient for viewing faults and helping to troubleshoot in time.

To assist you better understanding SiroSilo vertical form fill seal VFFS machine, please watch the following video for reference.

  • Outfeed Conveyor

The conveying function is also realized by the motor-driven chain, the materials fall directly into the outfeed conveyor’s hopper after being released from the vertical form fill seal VFFS machine.

outfeed-conveyor-2

  • Rotary Collecting Table

The materials from the outfeed conveyor fall into the rotary collecting table and are sorted by workers before cartoning.

For the rotary collecting table’s main parameters, please read the below table for reference.

Table Diameter 1200/1500mm optional
Voltage AC220V/380V, 50Hz/60Hz
Power 0.37Kw
Material 304# stainless steel

Multihead Weigher Packing Machine Manufacturers

Searching for multihead weigher packing machine manufactureres on Google, most of the SERP are from India, China, etc., this also indicates that most of the multihead weigher packing machine manufacturers are located in these two countries.

However, there are also giant multi head pouch packing machine manufacturers, like Ishida.

giant-multihead-weigher-packing-machine-manufacturer

Ishida invented the first multihead combination weigher, it was founded in 1893 and developed for nearly 130 years.

In addition, there is also a manufacturer of multi head pouch packing machines in the United States, its name is XtraVac.

Multi Head Packing Machine Price

Relatively speaking, there are many channels to obtain the price of multi head pouch packing machines in the Indian and Chinese markets.

In the Indian market, the price of a multi head pouch packing machine is about 12Lakh, which is approximately equal to USD$16,188.00;

Multi-Head-Packing-Machine-Price-4

The price range of the multi head pouch packing machine in the Chinese market is USD$20,000.00-USD$35,000.00.

Different suppliers choose different quality components, the warranty period is different, and the software optimization is also different, so the price will be different.

Multi Head Pouch Packing Machine

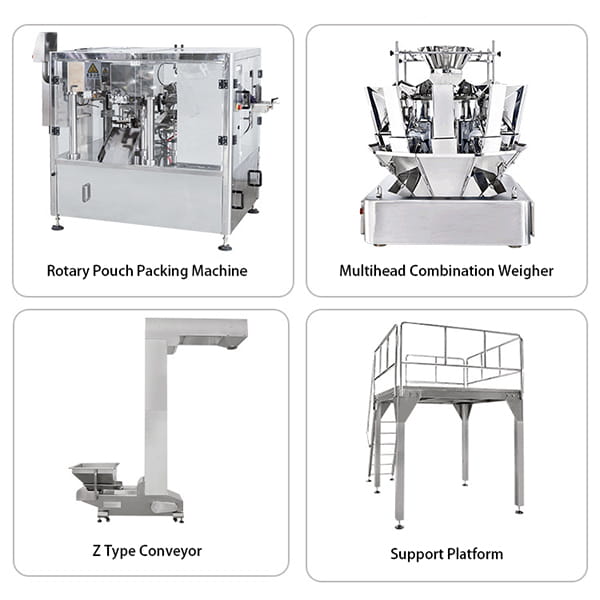

Multi head pouch packing machine is actually a packaging line composed of a variety of equipment. Multi head weigher and vertical packaging machine are two of the most important equipment.

According to the requirements of weight range and weighing speed, you can choose 10 head, 14 head, 24 head, 32 head weigher as your request;

According to packing speed, bag type, pouch material, pre made pouch or not, etc., the vertical packaging machine can be divided into vertical form fill seal VFFS machine and rotary pouch packing machine (pre made pouch packing machine).

pre-made-pouch-packing-machine-1

Among them, VFFS machine can be divided into continuous motion and intermittent motion types.

Please feel free to send us an inquiry on this website if you plan to purchase multihead packing machine recently, we will reply to you within 1h.

SiroSilo could also supply the following products, if you are also interested in any type, please feel free to send us an inquiry:

  1. Metal Silo
  2. Motorized Pulley
  3. Ultrasonic Cleaner
