Packaging Machine/

Cardboard Box Erector Machine

Max. Case Size L650mm×W500mm×H400mm
Min. Case Size L250mm×W150mm×H150mm
Speed 4-50 CPM
Sealing Type Tape/Glue Optional
Power Depends On Sealing Type
Voltage 220/380V, 50/60Hz
Pneumatics 0.6-0.8Mpa/6-8 Bar/87-116 Psi
Weight 450Kg

  • Product Detail
  • Inquiry

Cardboard Box Erector Machine

SiroSilo has different types of cardboard box erector machines for your choice, to solve your distress caused by inefficient manual case forming.

cardboard-box-erectors-1

The automatic cardboard box case erector transforms the carton blank into a top-opened, fully-erected, bottom-sealed carton for you to put the products into it.

cardboard-box-erectors-2

Compared with manual carton erecting, the speed of the auto case erector is faster, the erected cartons’ squareness is more consistent, and high consistency square cardboard boxes are easier for sealing, loading, palletizing, and storing.

After adding a case erecting equipment to your packaging line, you can use fewer employees to complete more output, enjoying better long-term returns.

In addition, you can also integrate it into your existing packaging line, and combine it with a case packer and a case sealer to realize a one-stop case forming, packing, and sealing.

automatic-carton-sealing-machine-1

If your daily carton packaging volume is ≥500, we suggest you add an automatic carton erector to your packaging line.

To learn more about our SiroSilo case former machine, please continue to read the content directory below.

You are also welcome to contact us at any time:

Email: info@sirosilo.com

WhatsApp: +8617312124727

What is a Cardboard Box Erector Machine?

The cardboard box erectors are carton forming machines, through erecting, folding, sealing, and other mechanical motions, they automatically convert flat corrugated box blanks into fully erected & bottom-sealed cardboard boxes.

case-erecting-processes-5

Such an efficient corrugated box erector greatly improves the packaging efficiency of logistics, distribution, and other industries, saving more labor costs.

cardboard-box-erector-machine-1

The demand for corrugated box erectors is increasing with the rise of online shopping.

Chinese manufacturers have customized ideal corrugated box erectors for many eCommerce customers.

Types of Case Erectors

SiroSilo supplies the following three types of case erectors:

  1. Conventional
  2. Non-programmable Robot
  3. Programmable Collaborative Robot

Conventional Cardboard Erector

Conventional cardboard erectors use air-driven cylinders or motor-driven cam & con rods to suck box blanks, form & shape boxes, fold bottom flaps, convey erected boxes for bottom sealing, etc.

This type of machine has the following three common classifications:

According to Erecting Direction

As shown in the photo below, there are two different kinds of case erecting directions:

different-case-erecting-direction-0

Horizontal

Horizontal carton erecting machines’ maximum speed can reach 50 cases/min.

Why they can reach such a high speed?

Because motor-driven cam controls its carton blank picking-up & flap folding, which is faster than compressed air drive.

cam-and-con-rods-0

In addition, they output more square cardboard boxes, and their carton blanks’ placement is more convenient.

Of course, they also have disadvantages.

They have requirements for carton hardness, and their price is much higher than the vertical type.

Operation

Refer to the figure below, you can understand the horizontal case erector’s working process clearly.

cardboard-box-erectors-1

The vacuum sucker sucks a blank from the stacked carton blank magazine, adsorbs the blank’s bottom, then moves to the box erecting station.

corrugated-box-erector-8

In the box erecting station, two more vacuum suction cups absorb the carton blank’s top and apply an upward pulling force.

The bottom vacuum suckers also generate a downward pulling force at the same time.

Two pulling forces in the opposite direction erect the carton blank upright.

After erecting & forming the carton, the machine moves the carton to the next sealing station.

The horizontal case erector first folds two inner flaps, then folds two outer flaps at the bottom of the box.

Finally, the pressure-sensitive tape head applies tape on the center seam between these two outer flaps, thus sealing the bottom.

cardboard-box-erectors-3

After the bottom sealing, the exit guide rod leads the carton to fall into the downstream packaging equipment;

flipped-cardboard-box-0

Or these erected & bottom-sealed boxes fall directly into the pre-placed container, and workers collect them for further use.

Benefits

With unique selling points & excellent quality, SiroSilo horizontal carton box erectors have won orders from customers in the food, medicine, beverage, electronics, tobacco, daily chemicals, toys, packaging, and printing industries.

  • Advanced Technology

AC motor-driven cam system ensures precise & stable mechanical operation;

  • Quality Parts

Electrical & pneumatic components are screened layer by layer;

  • Inverter Control

Inverter control carton forming & sealing, speed adjustable, saving man-hours;

cardboard-box-erectors-6

Siemens PLC & Delta Inverter

  • Easy Operation

Parameter setup on the touch screen, 5-10 minutes carton size changeover;

  • Replenishment of Box Blanks

Box blank replenishment doesn’t cause downtime, box blank shortage alarm;

  • Safety Cover

The machine stops automatically when the optional safety cover is open, accidental operation avoidable;

cardboard-box-erectors-5

  • Flexible Application

You can use it independently or link it to an automated packaging line, and it supports a wide range of box sizes.

cardboard-box-erectors-9

Vertical

Workflow

For the vertical case erector, please take a look at the following photo first.

Through this photo, you can roughly understand its workflow.

cardboard-box-erectors-2

Then, you can watch the following demo video, to digest its working principle better.

Pre-store the carton blank in the blank magazine.

Two vacuum suction cups absorb a vertical carton blank from the magazine.

At this time, the vacuum adsorption applies a pulling force on the carton.

case-erector-3

To shape the carton, two other vacuum suction cups adsorb the carton blank on the opposite side, stimulate a reverse pulling force, and two opposite pulling forces successfully erect & shape the carton blank.

cardboard-box-erectors-10

Then, the vacuum suction cups absorb the carton to the case erecting station.

After reaching the top of the case erecting station, the erector folds the bottom inner flaps & bottom outer flaps first, then pops out the pushrod, feeding the folded carton to the sealing station.

cardboard-box-erectors-3

The sealing station consists of motors, side belts, and a pressure-sensitive tape head.

After the carton enters the sealing station, it comes into contact with the side belts.

Driven by the side belts, the carton passes through the pressure-sensitive tape head at a constant speed.

case-erector-4

Side Belts & Pressure Sensitive Tape Head

The pressure-sensitive tape head seals the box, as shown in the figure below.

tape-applicator-workflow

Finally, the erector pushes the bottom-sealed carton to the outfeed port.

The bottom-sealed carton enters the downstream packaging line or drops directly to the ground, workers collect them for manual product loading or further use.

Features

Many customers purchase this type of erector due to the following selling points & features.

  • Dual Motor Drive

More powerful dual motor drive, low noise, more stable operation, faster sealing, highly efficient.

  • Wider Side Belts

The strong grip, wear resistance, high quality, stable transmission, and easily realized center sealing.

  • Touch Screen Control

Easy parameter setup & machine control.

  • Easy Carton Size Changeover

5-10 minutes carton size changeover, ergonomic table height adjustable as you like, ensuring comfortable operation.

  • Wide Range of Applications

Printing, 3C electronics, food, cosmetics, medicine, and daily chemical industries, all need corrugated box erectors for large-volume packaging.

Horizontal vs. Vertical

To better understand the difference between a vertical & horizontal cardboard box erector, please check the following comparison table.

Horizontal-VS-Vertical-Case-Erector-1

The horizontal cardboard erector price is higher, but the horizontal case erector has one advantage: regardless of the speed, its stability is very high;

Vertical box erectors vibrate during the box pickup process, vibration may cause damage to the suction cup or loose parts, thus their maintenance frequency is relatively higher.

But many small & medium-sized enterprises still purchase the vertical type, because it is cheaper.

Based on Sealing Media

BOPP Tape

BOPP adhesive tape is the most commonly used corrugated carton bottom sealing media during the erection process.

Hot Melt Glue

Hot melt glue corrugated box bottom sealing is more environmentally friendly than BOPP tape, but the price of such an erector is higher because an additional hot melt glue applicator is essential.

Tape vs. Glue

Tape sealing & hot melt glue closure have their advantages & disadvantages.

  • Pros & Cons of Tape Sealing
  1. Lower price;
  2. Less power consumption;
  3. Easier maintenance;
  4. Tape quality affects sealing quality;
  5. Tape sealing can’t keep up with high-speed case forming;
  6. A roll of tape runs out faster than a tank of glue, more frequent tape replacement.
  • Pros & Cons of Hot Melt Glue Closure
  1. Higher efficiency;
  2. Glue replacement frequency is lower than tape replacement;
  3. Glue may block the hoses & nozzles;
  4. Over-spraying may occur, and more cleanup efforts.

You can decide which type to choose based on the above comparisons.

According to Carton Styles

RSC

The width of Regular Slotted Containers’ outer flaps is exactly half the width of the box, and the two outer flaps meet at the container center line.

regular-slotted-container-(rsc)-0

RSC is the world’s most common slotted box style due to its efficient and versatile design that minimizes waste.

HSC

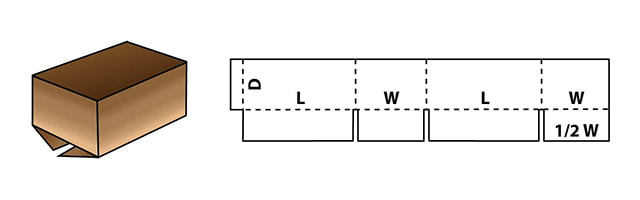

Compared to the RSC containers, the Half Slotted Container (HSC) box lacks a set of top flaps.

half-slotted-container-(hsc)-0

After folding & sealing the HSC containers, its top is completely open, making it easy to load products and suitable for displaying loaded products to customers.

OSC

Its one-side outer flap overlaps on the other side outer flap by a width less than or equal to the container width.

When the overlapping width is less than the container width, we call it an Overlap Slotted Container (OSC);

overlap-slotted-container-(osc)-0

If the overlapping width is equal to the container width, we call it a Full Overlap Slotted Container (FOL).

full-overlap-slotted-container-(fol)-0

If your cases are special, please contact us first, and we will customize a suitable carton box erector machine for you.

Email: info@sirosilo.com

WhatsApp: +8617312124727

Cobot Box Erector

Let’s first talk about the workflow of the box erector robot.

The collaborative robot uses a vacuum sucker to take out the carton blank from the magazine, and the robotic arm opens, erects, and squares the carton.

Then, the robot arm places the erected carton on a long rail to close the minor flaps and then moves the carton along the rail to the pressure-sensitive tape head.

During the movement, two folding plows close the major flaps.

Finally, the carton passes through the tape applicator, and the tape applicator sticks tape on its bottom.

Its biggest advantage is erecting cartons of different sizes in the same cycle without changeover time, as shown in the following video:

Pre-programmed Robotic Carton Erector

Pre-programmed robotic carton erectors are selling very well in China.

tested-and-packed-robotic-case-erector-0

In November 2023, a domestic customer purchased 8 units at one time.

pre-programmed-robotic-case-erector-shipment-0

The following two types are particularly popular with Chinese customers:

5 Servo Driven

With a full carbon steel frame (abrasive blasting surface treatment), and a net weight of 620 kg, solid enough.

5-servo-pre-programmed-robotic-box-erector-9

Tilting non-powered carton blank magazine, which can add carton blanks at any time.

robotic-arm-case-erector-2

5 suction cups grab carton blanks at the same time, ensuring that the carton does not fall off.

robotic-arm-case-erector-3

5 servo motors with mature and stable performance, 3 servo motors control the robotic arm, clean and sharp blank erecting;

2 servo motors control the drive belts, stable and reliable carton conveying.

5-servo-motors-distribution-0

High-quality pressure sensitive tape applicator, the tape fits better on the surface of the carton, a more flat & beautiful bottom seal.

pressure-sensitive-tape-applicator-10

Simple operation and fast speed, erecting 25-30 cartons per minute.

Fast carton size changeover, averaging 2.5-3 mins, and with one-touch control on the HMI.

The touchscreen menu includes Home, Manual Operation, Parameter Setting, Fault Record, Products Setting, Switch Products, etc., which is very convenient to control.

5-servo-drive-robotic-arm-case-erector-english-hmi-0

9 Servo Driven

Compared with the 5-servo model, it adds 4 servos for automatic adjusting:

  • Pressure Plate Height
  • Box Blank Magazine Height
  • Width between Two Side Drive Belts

9-servo-non-programmable-robotic-box-erector-0

When changing carton sizes, all you need to do is:

  1. Carton size input on the touchscreen
  2. Box blank magazine width adjustment
  3. Adjust the limit block & limit nail against the box blank top
  4. Push-down plate placement

pre-programmed-box-erector-robot-composition-schematic-0

Then you can click Start on the touch screen, the entire size changeover process only takes 30-60 seconds.

Folding Carton Erector

Speaking of folding carton erectors, many potential clients input small carton erector machines to search for them on Google.

A folding carton erector folds & forms small boxes for packaging products of 3C, beauty, cosmetics, e-commerce, electrical appliances, food, handicrafts, lighting, toys, and other industries.

piston-rings-carton-packaging

There are 3 common types of folding cartons, tuck end carton & lock bottom box, and mailer box.

Tuck End Box

Tuck end cartons include 2 types, reverse tuck & straight tuck:

straight-tuck-carton-box

Straight Tuck Carton

reverse-tuck-carton-box

Reverse Tuck Carton

To get fully-erected & bottom-sealed tuck end cartons, you can consider buying the tuck end carton erector in the following video.

123 Bottom Box

The following figure shows the snap lock bottom box:

small-folding-carton

We also specially designed a 1 2 3 bottom box erector machine for such a box, the video below shows its working process.

Mailer Box

Tab lock mailer box erector just converts carton blanks into fully-erected & bottom-sealed literature mailers.

tab-locking-carton-box-erector-2

The tab lock mailer box erector, can save workers’ time & effort on carton folding and forming.

It is popular in 3C electronics, toys, food, medicine, tobacco, daily chemicals, e-commerce, and other industries.

SiroSilo tab lock mailer box erector equipped with PLC plus graphic touch screen HMI, convenient operation, simple maintenance, and stable performance.

tab-locking-carton-box-erector-1

Regarding the video below, you can clearly understand our SiroSilo tab lock mailer box erector’s entire workflow.

Four vacuum suction cups suck a carton blank from the magazine and move to the top of the pressing & forming station.

When the pressing & forming station’s two baffles are in place, two plows fall to form a pocket for box loading.

forming-station-of-mailer-box-erector-1

At this time, the pressing plate appears from the top of the carton blank, it presses the carton blank down.

The mailer box’s side panel, front panel, and rear panel are erected normally, and its side panel’s closure flaps are also folded.

tab-lock-carton-box-blank-template

Then, the pocket carries the erected box to the next station.

In this follow-up station, a tucker folds inward the side closure panel, until the side closure panel adheres to the side panel, and inserts the side closure panel’s tabs into the bottom panel’s socket.

The box erecting is over, then the backward box pushes the finished top-open literature mailer out of the exit.

tab-lock-mailer-box-outlet-1

If you have any more questions about this machine, please feel free to contact us, and we will get back to you ASAP.

Carton Erector and Sealer

Some manufacturers integrate the case erector and the case sealer into one machine and also add the packing function. The final combined machine is the “case erector packer sealer”.

Such case erector packer sealer can be connected to the outfeed conveyor of the upstream production equipment, forming a complete automatic carton packaging line.

We have also developed and produced our case erector packer sealer. Please refer to the following video to watch its actual operation effect.

Some manufacturers also add a transmission line between the case erector and sealer, then arrange manual packing beside the transmission line to form a semi-automatic carton packaging line.

The following video is a working video of the SiroSilo semi-automatic carton packaging line.

This packaging line also adds a labeling process behind the carton sealer, which is especially suitable for the e-commerce industry.

Case Erector and Bag Inserter

The combined case erector and bag inserter can automatically complete the carton erecting, top-open carton inputting, carton positioning, polybag film unwinding, film heat sealing, bag inserting, film cutting off, bag cuffing, and carton outputting.

It is linkable to the downstream automatic packing machine to form a fully automatic packaging line, suitable for in-box bagging of snack food, solid oil, grease, edible oil, condiments, biscuits, bulk food, raw materials, beverages, chemical powder, hardware accessories, screws, electronic components devices, etc.

Watch the video below for an overview of the combined case erector and bag inserter in action.

To learn more about the combined case erector and bag inserter, click on the image below.

case-erector-bag-inserter-1

You can also communicate with us in-depth via email or WhatsApp.

Email: info@sirosilo.com

WhatsApp: +8617312124727

Carton Erector Machine Manufacturer

SiroSilo is a professional case erector manufacturer in China, with our engineering team & factory.

associated-factory-of-case-erector

We have won the favor of many well-known Chinese customers, including CJ Rokin Logistics, ZTO Express, L’Oreal Group, GLP, Cainiao, China Post, JD.com, etc.

benchmark-customer-of-case-erector-1

For Chinese case erector machine manufacturers, it is essential to provide each customer with flexible customization functions.

If you need case forming machines, we will do our best to meet your requirements.

Box Erector Machine Cost

The price of a box erector machine depends on the following factors:

  • Type (horizontal/vertical)
  • Type of sealing (tape/glue)
  • Degree of automation (semi-automatic/full-automatic)
  • Carton size

After determining these factors, then the price of the box erector machine is quotable.

The following two pictures show the prices of a semi-automatic box erector and a fully automatic box erector-sealer from an American manufacturer, you can use these prices as a reference.

american-semi-automatic-box-erector-machine-cost

american-automatic-box-erector-machine-cost

The price of a similar Chinese machine will be more attractive.

You have scrolled this far, so why not contact us to request a quote for comparison and enjoy worry-free sourcing services like our American customer Mr. Bob?

Email: info@sirosilo.com

WhatsApp: +8617312124727

    PersonalBusinessDistributor

    Leave a Reply

    Leave Your Message
